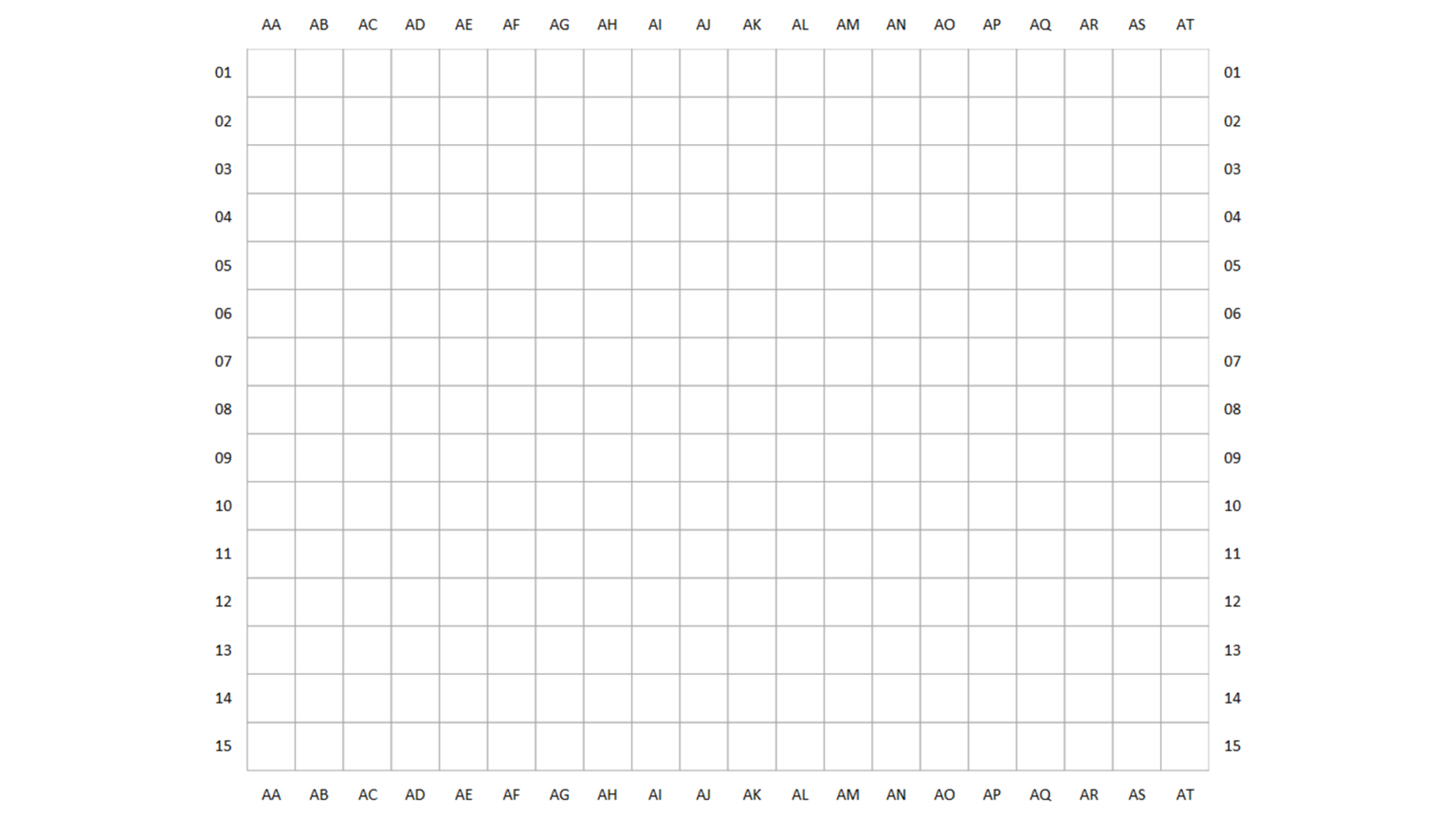

The DC Floor Tiles add-in helps you in laying out your creating grids of floor tiles for your data center floor plans quickly and easily.

This module allows users to:

  • Turn one shape into a grid of columns and rows
  • Label selected shapes with a sequence of numbers or letters, possible layout options: left->right, right->left, top->bottom, bottom->top
  • Can also be applied to ports on patch panels, carpet tiles, ventilation tiles and other grids or arrays of shapes

How to download

To download the add-in you must register using the “contact us” section on the site. Our team will then e-mail you with a download link. Please note: the utility requires any of the following versions, Visio 2007, 2010, 2013 and 2016 (Professional or Premium versions required for shape data and data graphics support).

You will then receive a download link in an e-mail.

If you want a custom version of the add-in, or templates and stencils then please contact us.
